Model 300 Cyclonic Oscillator

---

Provides a means to obtain more accurate and reproducible analysis results. This is accomplished by placing the sample containers through two mechanical actions simultaneously.

The samples contained in the sample tray/drum are under a continuous gravitational change by rotation of 360 degrees and 20 degrees end to end angular change per revolution. This motion processes the contained samples forming a homogeneous flow allowing no stratification due to sample density configuration differences.

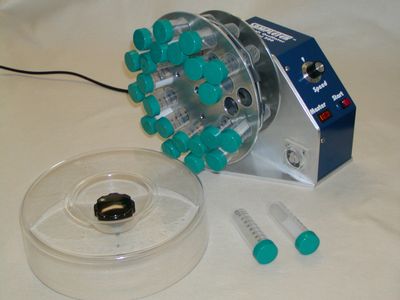

The Cyclonic Oscillator consists of a sample tray/drum which is mounted on a drive unit: for convenience more than one drum can be provided. The D24A drum handles 24 tubes of 30 to 50 ml volume. Custom drums for other size sample tubes can be requested.

There is great versatility in the Cyclonic Oscillator's speed /cycle time from 0 to 42 cycles / revolutions per minute with a timer that has multiple range selections from seconds to hours. After making selection, just press "start" button. Following runs will be identical unless cycle / speed or running time is changed.

The Cyclonic Oscillator is ideal for processing viscous substances and liquid-solid substances as well as performing determinations on solubility or non-solubility samples. Additional uses include performing digestions or extractions where minimum aeration may be desired.

Number of Tubes:        24

Tube Size:                     30 to 50 ml

Rotation Speed:            0 to 42 rpm

Dimension (WxDxH)      12" x 10 1/4" x 12"

Net Weight:                   16 lb.

Electrical Supply:            115VAC 60Hz
